2018 Call for Projects Application List

Who is Completing the Application?

Please provide contact information for the person who will complete the online application for this project. The email address and password entered here will be used to complete and submit both Pre-Applications and Applications.

Name

Maureen Crocker

Title

Assistant Director

Phone Number

832-395-3222

Email Address

[email protected]

Primary Agency Information

Please provide contact information for the agency official who is representing the project sponsor. This individual will be considered the official applicant and must be authorized by their agency to submit this request for funding and make necessary assertations and representations on the agency’s behalf.

Agency Name

City of Houston -Houston Public Works

Name

Maureen Crocker

Title

Assistant Director

Phone Number

832-395-3222

Email Address

[email protected]

Address

611 Walker

City

Houston

State

TX

Zip Code

77002

Additional Agency Information

1. Is this project being developed and/or implemented in partnership with another agency?

Agency Name

Fort Bend County

Name

Grady Prestage

Title

County Commissioner Pct 2

Phone Number

281-342-3411

Email Address

[email protected]

Address

301 Jackson St., 4th Floor, Richmond, TX 77469

City

Richmond

State

TX

Zip Code

77469

Project Information

1. Project Title

West Fuqua Street

2. Project County

Harris County

3. Facility/Street Name

West Fuqua Street

4. Project limits (from, to) or location (Address)

City Limits to Chimney Rock Road

5. Describe the primary problems to be addressed by the project (Project Need).

Summary of Problems: • Need for intersection improvements and turn lane storage • Need for safe pedestrian crossings and wider sidewalks • Need for signalized intersection The existing concrete pavement is in fair condition; however there are damaged curbs and failing panels throughout the corridor. The pedestrian facilities, including ramps, sidewalks, and bus shelters, are generally in poor condition. Sidewalks are cracked, broken, and uneven creating a safety issue. The need for safe pedestrian crossings and wider sidewalks for neighboring schools (Briargate Elementary, Southern Preparatory Academy, and Hunter Glen Elementary) and public library (Stimley Blue Ridge library) that feed into the corridor. Street and Traffic needs identification was evaluated based on the physical condition and capacity of the roadway. The pavement is over 40 years old and shows wide cracks, failure at joints, and numerous asphalt patches. Pedestrian mobility and safety are lacking with sidewalks in poor condition and lack of wheelchair ramps at cross streets and ADA compliance.

6. Describe the proposed improvement/activity (Description).

Proposed Improvements include: • New traffic signal at Ridgecreek and stop sign at Ridgerock. • Turning bays at median openings and turn lanes at new signalized intersections • Relocate and improve Metro Bus Stops along the corridor to optimize traffic operations. • Implement access management/driveway spacing to minimize conflicts and improve access to various developments along the corridor. • Reconstruction of roadway with new pavement and lane width standard

7. Describe the primary outcomes to be achieved by the project (Project Purpose)

-Improve pedestrian safety with wider sidewalks and ADA compliant ramps/crosswalks. -Improve intersection safety and throughput with turn lanes, new signals and median turn lanes. -Improve pavement condition and ride quality Improve water and wastewater utilities. -Improve storm drainage to convey design and extreme event. Project will replace the street that is beyond repair and normal maintenance and also bring to current lane width standard. The project will also upgrade existing underground water, wastewater, and storm utilities.

8. Have any MPOID numbers been assigned to this project?

No

9. Have any TxDOT Control-Section-Job (CSJ) numbers been assigned to this project?

No

10. What is the estimated total capital investment required for the project?

Less than $100 million

A. Investment Category & Strategy

(Maintain) Roadway/Freight Rehabilitation/Reconstruction

11. Please provide the federal funding amount requested.

13806000

12. Please upload the funding commitment letter or letters of support from the local government.

Support_letter.zip

Project Development/Readiness

1. Please select the level of engineering completed.

30% PS&E

2. What is the completed or anticipated level of environmental documentation required for the proposed project?

Categorical Exclusion (CE)

A. What was/is the anticipated completion date of the environmental clearance?

03/27/2020

B. Type of Categorical Exclusion (CE)? (Optional)

3. Will any of the following be required to implement the project? US Army Corps of Engineers Permits

No

US Coast Guard Permits

No

Railroad Agreements

No

None of the Above

Yes

4. Will the acquisition of Right of Way or an easement be required to implement the project?

No

5. Has utility coordination been initiated for the project?

No

6. Will the project improve or significantly affect infrastructure owned or operated by another agency?

No

8. Please provide any additional project development/readiness information relevant to the proposed project. (6000 characters max) (Optional)

City of Houston conducted a pre-engineering study on this corridor. The project is currently in design. See attached report.

9. Additional Project Development/Readiness Attachment (Optional)

W. Fuqua Final Reports.zip

Map/Location

1. Please provide a clear and concise GIS coverage or PDF map for the proposed project. (MPK ESRI Map Package file preferred)

Fuqua_map2.pdf

Project Budget

1. Please attach a completed project budget worksheet. Templates are available on the 2018 Call for projects website.

project-budget-fuqua.xlsx

2. Are Transportation Development Credits (TDCs) being requested?

No

Benefit/Cost Analysis

1. Safety Benefits

Roadway-Safety-Benefits- Fuqua.xlsx

2. Delay Benefits

1031201814833PM.xlsx

3. Emissions Benefits

Roadway-Emissions-Benefits- Fuqua.xlsx

4. Additional BCA Documentation (Optional)

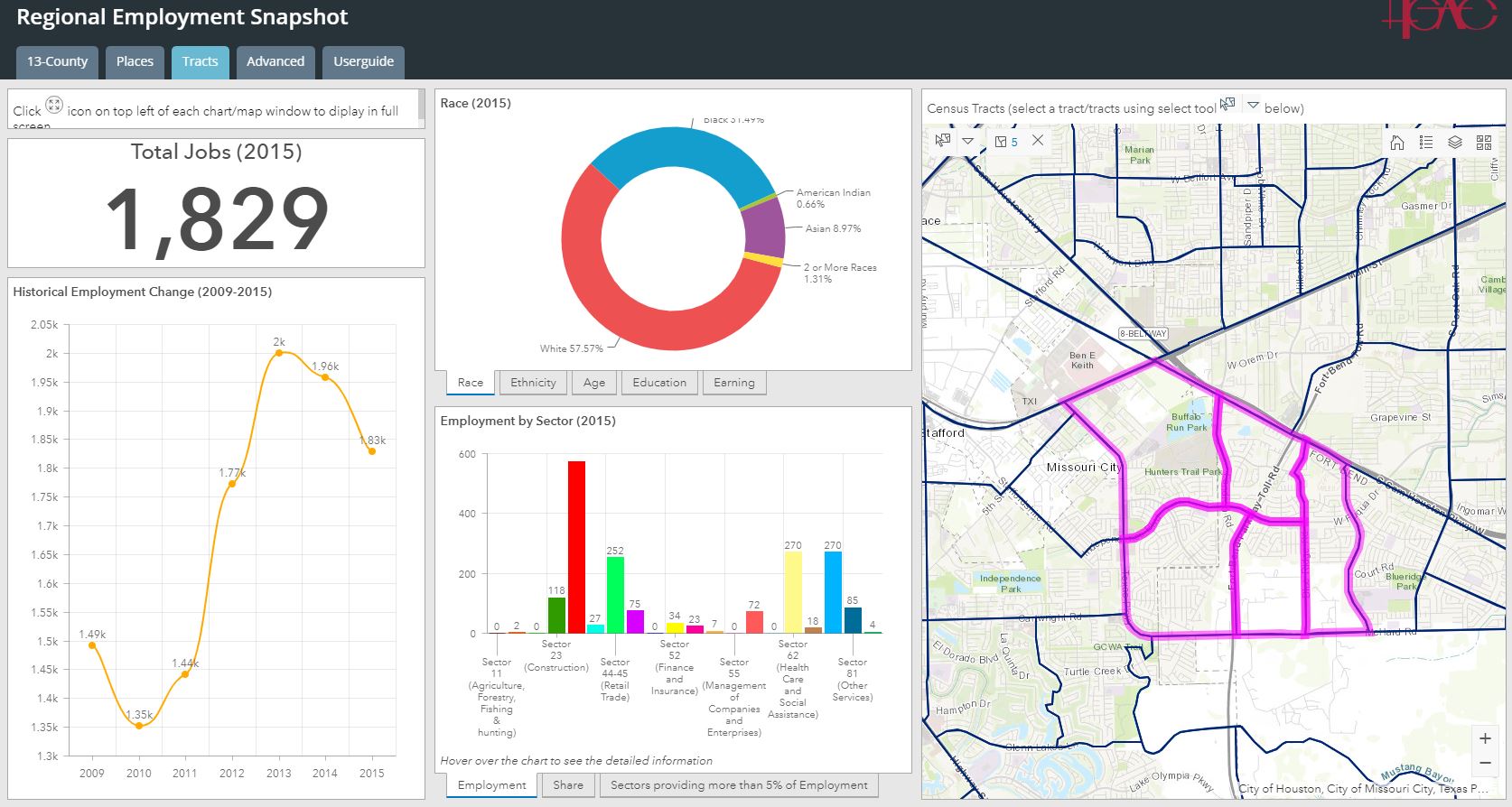

Regional Employment_Fuqua.JPG

5. Additional BCA Documentation (Optional)

TIP Resolution 2018-0035.pdf

6. Please provide a brief narrative describing the methodology, input data and results. (Optional)

Fuqua Road is being submitted under the Rehab/Reconstruction category. The project improvement will provide benefit by install pedestrian crosswalks, turn lanes at intersections and turn bays in medians, new traffic signal, and stop sign.

Planning Factors - Connectivity to Employment/Eliminates At-Grade Railroad Crossings

1. Does the facility directly connect to or is located within 1/2 mile of employment?

Yes

A. If yes, please indicate number of jobs the facility directly connects to or is within a 1/2 mile?

901 - 1000

2. Does the proposed project eliminate or prevent at grade railroad crossing?

No

Planning Factors - Environmental Justice

1. Is the proposed project located in or is adjoining an environmental justice sensitive area (census block groups) identified by HGAC?

Yes

A. If Yes, Will the project incorporate measures that reduce, minimize or avoid adverse effects environmental justice sensitive areas (census block groups) identified by HGAC?

Yes

Planning Factors - Resiliency/Flood Mitigation Strategies

1. Does the proposed project improve transportation resiliency or include flood mitigation strategies?

Yes

A. If yes, please provide a brief narrative describing how the proposed project improves resiliency or includes flood mitigation strategies. (Example flood mitigation strategies may include: elevating facility above ground level, additional storm water detention, flood warning devices, or other flood control measures)

The reconstruction of W. Fuqua will included upgraded storm sewer system that will reduce street ponding during heavy storm events; maintaining mobility for transit, and area residents. Fuqua also is a direct connector to Beltway 8 and Fort Bend Toll Road which is an evacution connector, and major roadway on the freight system network.

Planning Factors - Improves Multimodal LOS

1. Does the proposed project improve highway/freight LOS?

No

2. Does the proposed project improve transit LOS?

Yes

3. Does the proposed project improve bike/pedestrian LOS?

Yes

4. Please provide a brief narrative explaining how proposed project improves multimodal LOS (Auto, Bike/Ped, and Transit).

Project will improve pedestrian LOS with wider and safer sidewalks by replacing broken/uneven sidewalks and installing ADA compliant ramps and crosswalks. Transit LOS will be improved with new roadway surface and improved drainage system to reduce street ponding.

Planning Factors - Planning Coordination

1. Is the proposed project recommended in a regional/sub regional/or locally adopted plan including regional thoroughfare plans? Or Has the sponsor conducted interagency coordination with other local or state agency affected by the proposed project?

Yes

A. If yes, please provide the title of the regional/sub regional or local plan in which the proposed project is recommended.

City of Houston Major Thoroughfare and Freeway Plan

B. If yes, please provide a link to the regional/sub regional or local plan in which the proposed project is recommended.

https://www.houstontx.gov/planning/transportation/MTFP.html

Planning Factors - Roadway Hierarchy/Freight System Priority/Evacuation Route

1. Please select the functional classification of the roadway on which the proposed project is located, based on the characteristics of the roadway after the project is implemented. The FHWA Highway Functional Classification Concepts, Criteria and Procedures is provided in the link below.

Collector

2. Is your project located on one of the following? Greater Houston Freight System

No

Locally Designated Freight Corridor

No

State Designated Evacuation Route

No

None of the Above

Yes
